Complete Metal Forming Solutions
Robot Loading & Material Handling
Workpiece handling can use a forging manipulator or articulated industrial robot according to the process. Anyang publishes a hydraulic CNC forging manipulator with lateral shift and manual, semi-automatic and automatic operation, plus robot-based forging and descaling examples.

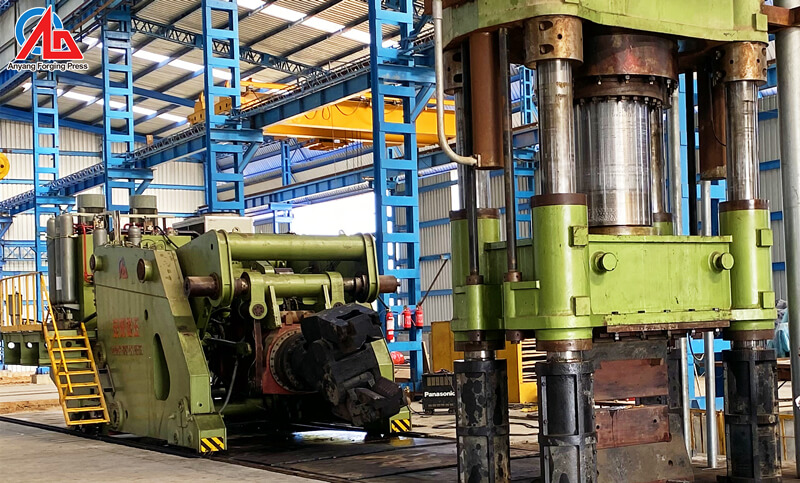

Manufacturer product images
Technical information
| Parameter | Published manufacturer information |
|---|---|
| Manipulator load classes in manufacturer chart | 10T, 20T, 30T, 40T and 50T |
| Manipulator drive | Fully hydraulic, with lateral shift |
| Operating modes | Manual, semi-automatic and automatic |
| Linkage | Digital input linkage with a hydraulic open-die forging press |
| Robot payload / reach / cycle time | Specifications available upon request |

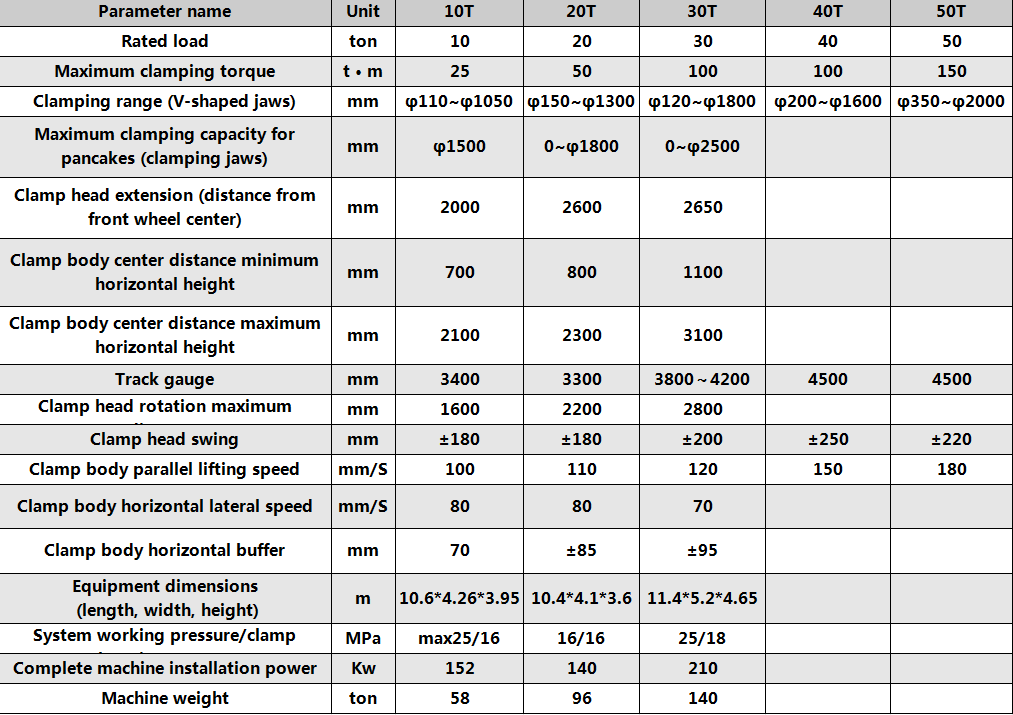

Complete official parameter charts
The parameter chart applies to the CNC forging manipulator, not to an articulated robot. Blank cells in the manufacturer chart remain unspecified.
Technical sources, checked 24 October 2026: CNC Forging Manipulator · Manufacturer application reference. Final model configuration and technical documentation require written confirmation.
