Special Forming Presses
Powder Compaction Presses
Hydraulic powder compaction equipment for metal and non-metal powders. The brochure describes pressure, stroke and time settings, powder handling, pressing and ejection arrangements, with product examples in ceramic, graphite and other powder-based materials.
Product images
Technical information
| Parameter | Catalogue information |
|---|---|
| Process family | Powder compaction |
| Material scope in brochure | Metal and non-metal powders |
| Adjustable process items | Pressing force, stroke and time |
| Brochure accuracy statement | Pressing accuracy up to 0.05 mm; the brochure does not identify a model or test conditions |
| Rated force / fill depth / ejection stroke / output | Specifications available upon request |
Applications and selection
Examples shown include ceramic parts, activated-carbon filter elements, graphite products, abrasive products and other compacted components. Powder characteristics, fill behaviour and tooling geometry must be reviewed before selecting a machine.
Catalogue options
Options listed by the manufacturer; availability must be confirmed for the selected machine.
- Pressure holding
- Floating compaction or two-direction pressing arrangements
- Powder feeding and automatic demoulding arrangements
- Safety light curtain
- Oil cooling
- Proportional flow control
Technical enquiry inputs
- Workpiece drawing, material and dimensions
- Required forming process and tooling envelope
- Required force, stroke, daylight and table dimensions
- Target cycle time, handling requirements and installation constraints

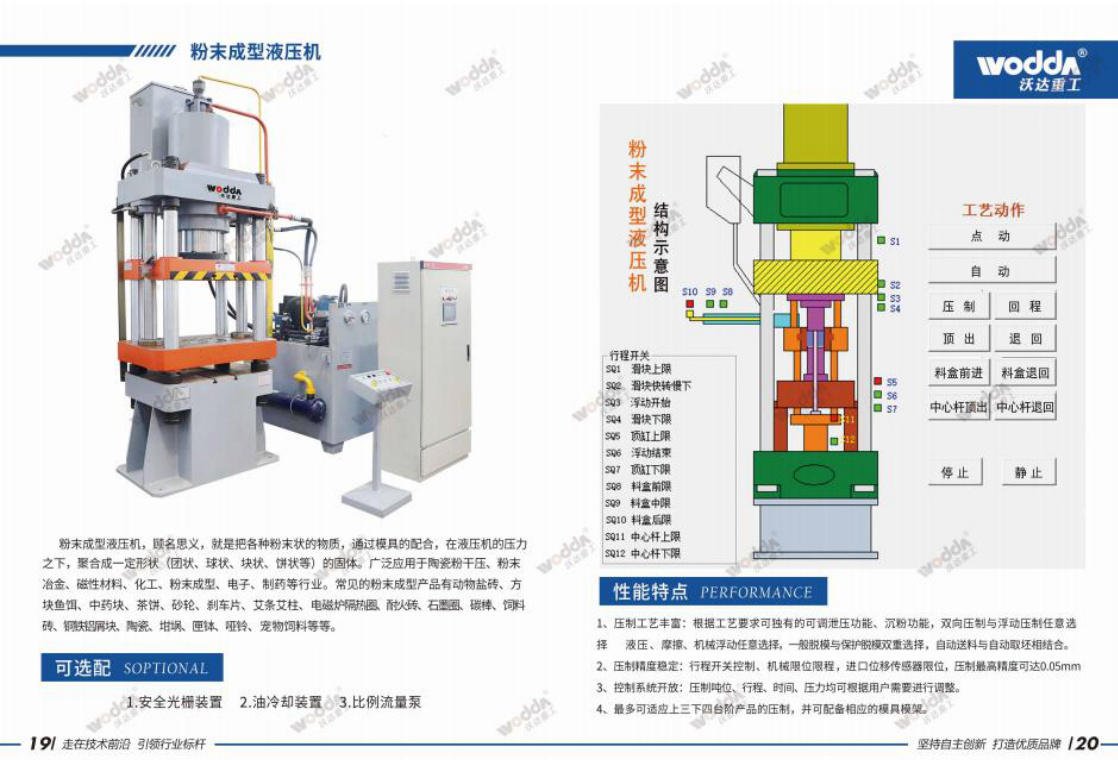

Technical source: supplied Shandong Woda Heavy Industry product brochure, PDF page(s) 4-6. Manufacturer illustrations retain their original branding. Model-specific specifications and final equipment scope require written confirmation.
