Forging Hammers
Pneumatic Forging Hammers
C41 industrial pneumatic forging hammers use a self-contained air system and do not require an external compressed-air supply. The manufacturer lists drawing-out, upsetting, punching, chiselling, forge welding, bending and twisting applications.

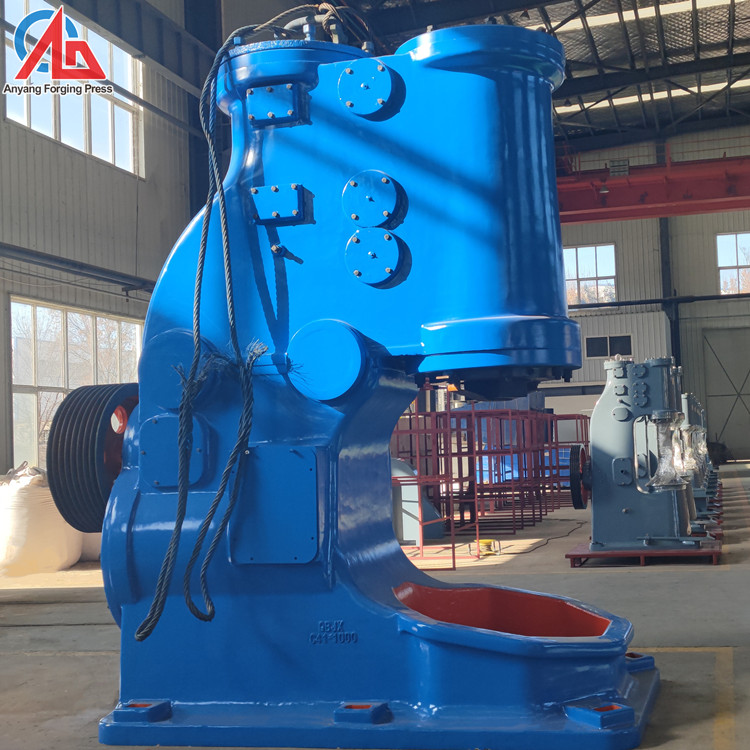

Manufacturer product images
Technical information
| Parameter | Published manufacturer information |
|---|---|
| Published industrial models | C41-150, C41-250, C41-400, C41-560, C41-750, C41-1000 and C41-2000 |
| Falling-part weight | 150-2,000 kg |
| Published blow energy | 2.5-54 kJ |
| Published blow frequency | 80-180 min⁻¹ |
| Working height | 370-1,000 mm |
| Throat depth | 350-950 mm |
| Motor power | 18.5-132 kW |

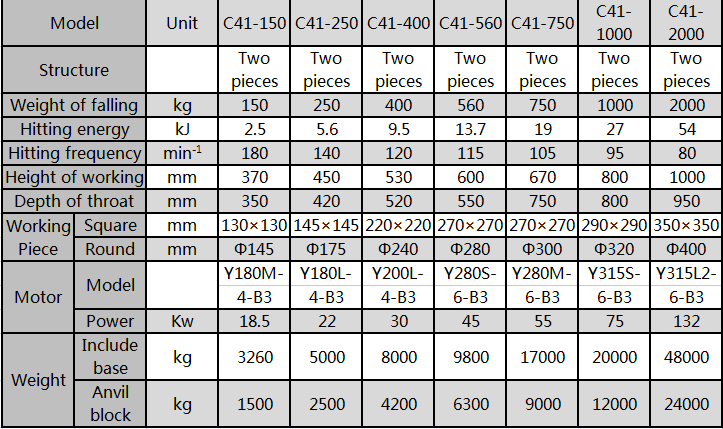

Complete official parameter charts
The kilogram designation refers to falling-part weight, not press tonnage. This page covers the published industrial series; smaller blacksmith hammers require their own model-specific data.
Technical sources, checked 24 October 2026: Pneumatic Forging Hammer / Power Forging Hammer (C41). Final model configuration and technical documentation require written confirmation.
