Forging Hammers
CNC Hydraulic Closed-die Forging Hammers
C92K series CNC hydraulic closed-die forging hammers use a double-acting hydraulic drive and programmable blow-energy control. The manufacturer describes an HO-U structure and integration with robotic forging lines.

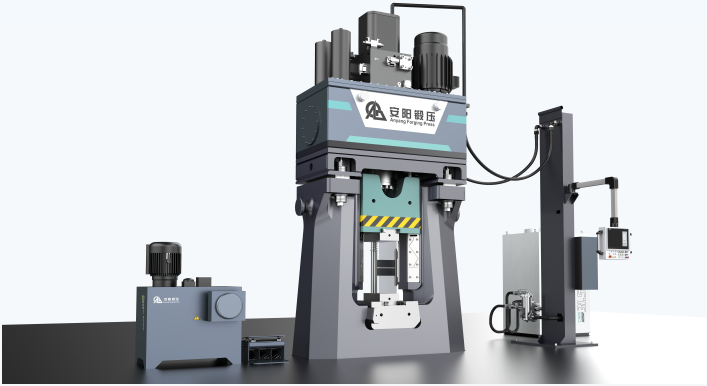

Manufacturer product images
Technical information
| Parameter | Published manufacturer information |
|---|---|
| Series | C92K |
| Published blow energy | 16-625 kJ, model-dependent |
| Published ram weight | 1,080-28,500 kg |
| Published maximum blow frequency | 33-90 min⁻¹, model-dependent |
| Control and construction | Programmable hydraulic double-action hammer; HO-U structure |

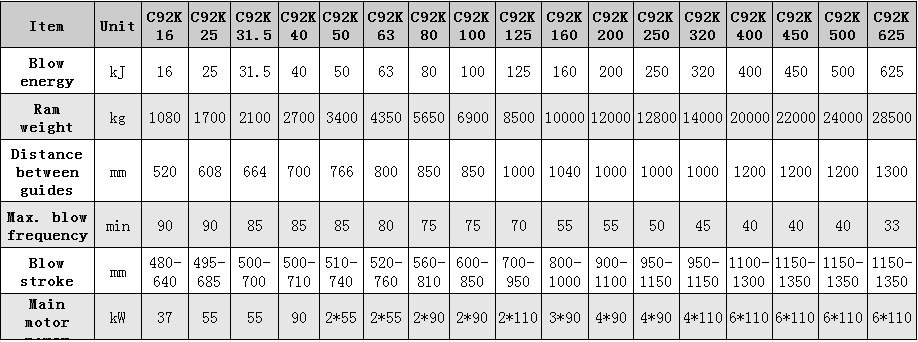

Complete official parameter charts
The complete official chart below covers C92K-16 through C92K-625. Blow energy is not nominal press force. Automation output requires a complete workpiece and process review.
Technical sources, checked 24 October 2026: CNC hydraulic Close Die Forging Hammer (C92K). Final model configuration and technical documentation require written confirmation.
