Hydraulic Presses
Deep Drawing Hydraulic Presses
Multi-station deep drawing hydraulic press concept combining several operations in one integrated machine. The brochure describes blanking, repeated drawing and trimming for metal components.
Product images
Technical information
| Parameter | Catalogue information |
|---|---|
| Process family | Multi-station deep drawing |
| Brochure operations | Blanking, multiple drawing stages and trimming |
| Illustrated handling | Loading/unloading manipulator shown |
| Typical brochure component examples | Filter housings; fire extinguisher bodies; small motor shells |
| Station count / rated force / drawing stroke / output | Specifications available upon request |
Applications and selection
The brochure lists automotive, motorcycle, hardware, stainless steel, household and kitchen component applications. Draw depth, wall thickness, material grade and intermediate geometry must be reviewed for the actual part.
Catalogue options
Options listed by the manufacturer; availability must be confirmed for the selected machine.
- Safety light curtain
- Oil temperature control/cooling
- Ejection system
- Multi-station manipulator integration
Technical enquiry inputs
- Workpiece drawing, material and dimensions
- Required forming process and tooling envelope
- Required force, stroke, daylight and table dimensions
- Target cycle time, handling requirements and installation constraints

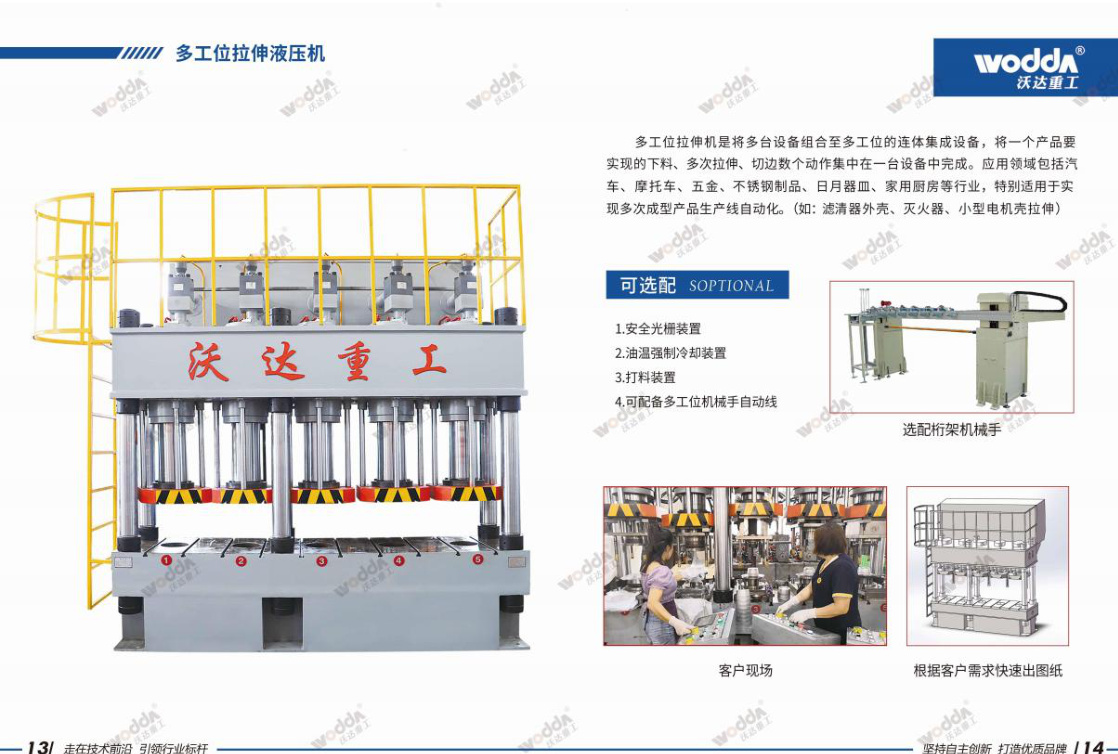

Technical source: supplied Shandong Woda Heavy Industry product brochure, PDF page(s) 3. Manufacturer illustrations retain their original branding. Model-specific specifications and final equipment scope require written confirmation.
