Complete Metal Forming Solutions
Composite Moulding Production Lines

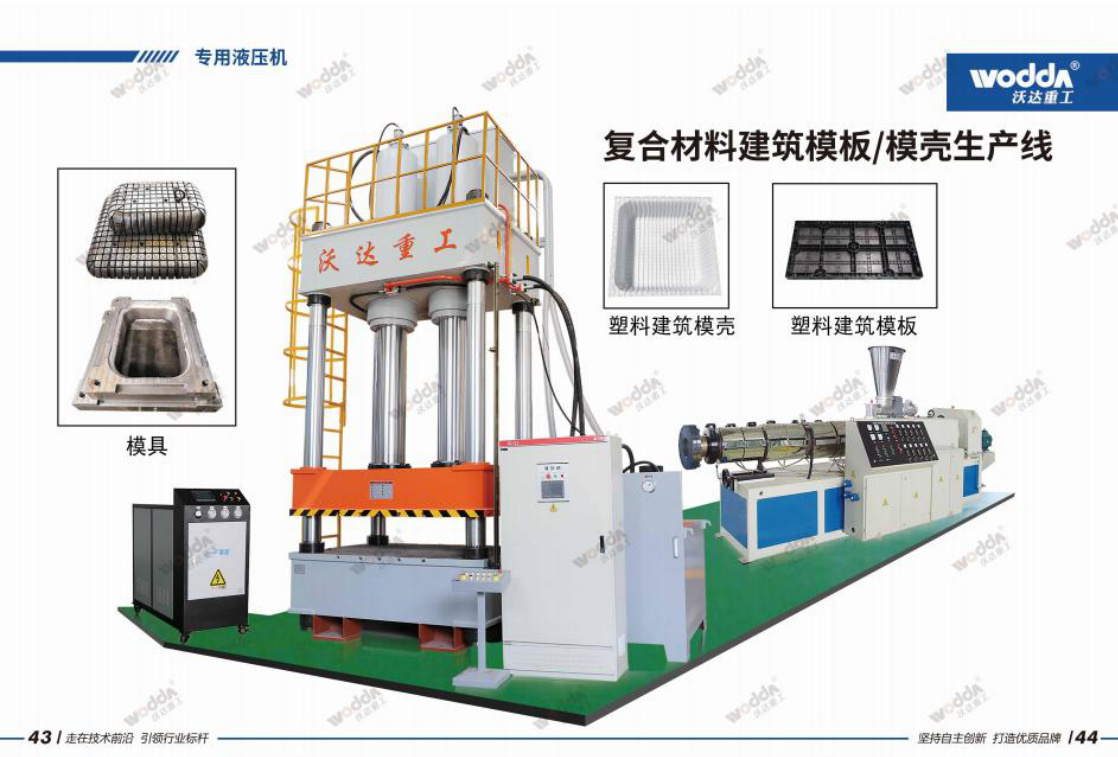

Composite moulding line concepts illustrated for building formwork/mould shells and BMC / DMC products. The brochure shows distinct arrangements; each must be selected around the material system and final part.
Product images
Technical information
| Parameter | Catalogue information |
|---|---|
| Process family | Composite moulding production lines |
| Brochure line examples | Composite building formwork/mould shells; BMC / DMC moulding |
| Illustrated equipment | Hydraulic press; mould; associated material preparation and control equipment |
| Rated force / mould dimensions / cycle time / line output | Specifications available upon request |
Applications and selection
Provide the resin or compound system, component drawing, mould format and target output. Equipment modules and acceptance criteria must be defined for the individual line.
Technical enquiry inputs
- Workpiece drawing, material and dimensions
- Required forming process and tooling envelope
- Required force, stroke, daylight and table dimensions
- Target cycle time, handling requirements and installation constraints
Technical source: supplied Shandong Woda Heavy Industry product brochure, PDF page(s) 10-11. Manufacturer illustrations retain their original branding. Model-specific specifications and final equipment scope require written confirmation.
