Forging Hammers
Electro-hydraulic Forging Hammers
The C86Y series is identified by Anyang as a fully hydraulic closed-die forging hammer. Hydraulic oil drives both the striking and return strokes; the manufacturer distinguishes this drive from nitrogen-gas operation.
Manufacturer product images
Technical information
| Parameter | Published manufacturer information |
|---|---|
| Manufacturer series designation | C86Y fully hydraulic closed-die forging hammer |
| Published blow energy | 25-630 kJ |
| Published ram weight | 1,000-25,000 kg |
| Published maximum stroke | 1,000-1,700 mm |
| Published minimum die height | 220-500 mm |
| Published blow frequency | 35-70 min⁻¹, depending on model and operating range |

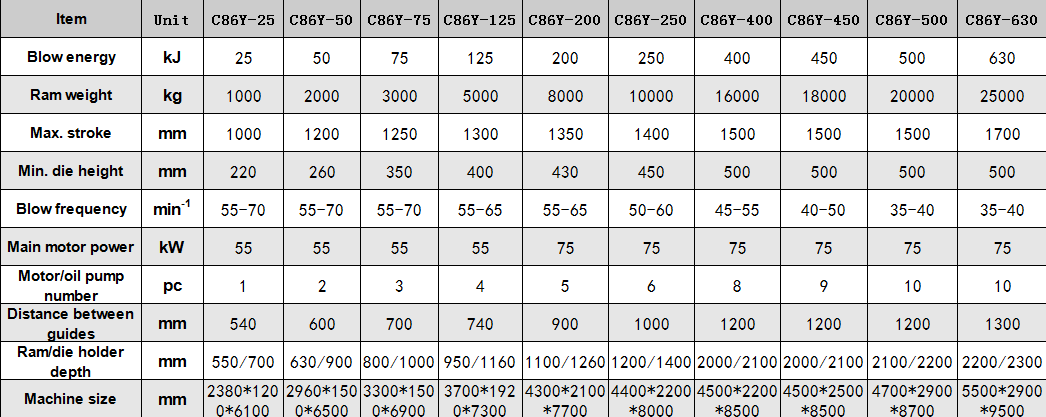

Complete official parameter charts
The category name Electro-hydraulic Forging Hammers is retained for navigation. The technical reference presented here is specifically the C86Y fully hydraulic design. Motor power and motor/oil-pump quantity are separate rows in the original chart and must be read together.
Technical sources, checked 24 October 2026: Fully Hydraulic Closed Die Forging Hammer (C86Y). Final model configuration and technical documentation require written confirmation.
