Special Forming Presses
Metal End-forming / Dish Head Presses

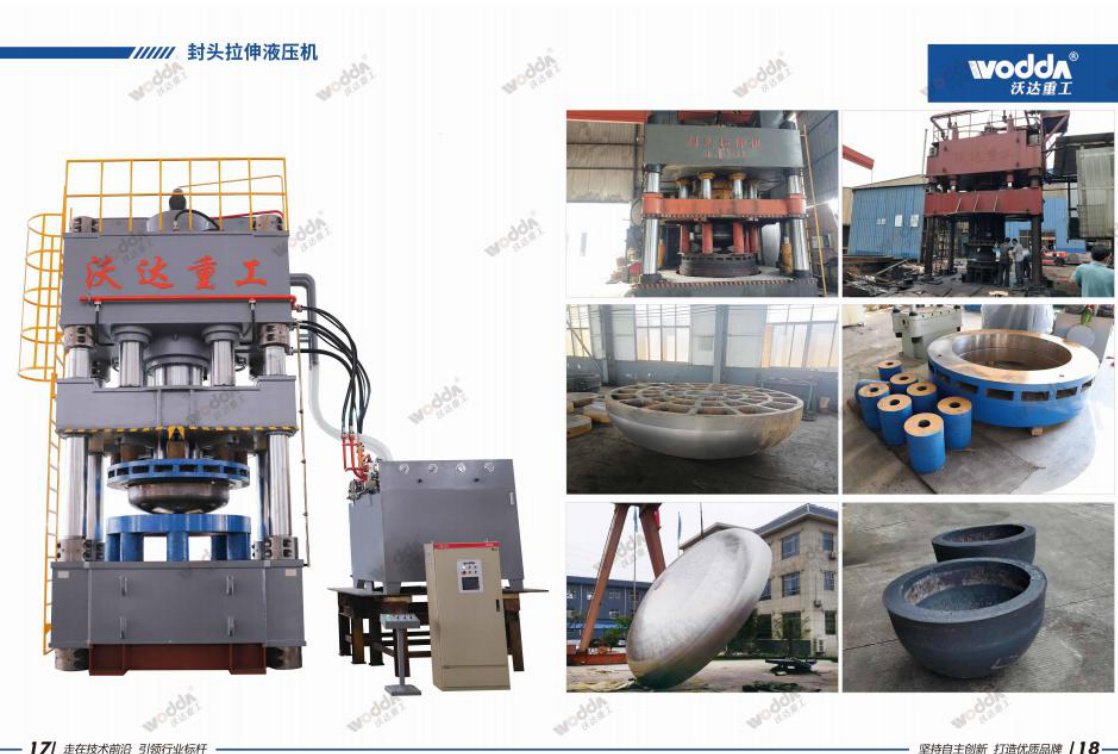

Hydraulic press for forming drawn dish heads. The brochure presents the press together with tooling and formed head examples, documenting the product family and process arrangement.
Product images
Technical information
| Parameter | Catalogue information |
|---|---|
| Equipment category | Hydraulic press |
| Process family | Dish head drawing/forming |
| Illustrated equipment | Vertical hydraulic press and forming tooling |
| Head diameter / material thickness / force / drawing depth | Specifications available upon request |
Applications and selection
Selection requires the head profile, blank diameter, material grade and thickness. Provide forming depth, tooling concept and the applicable vessel or component drawing for engineering review.
Technical enquiry inputs
- Workpiece drawing, material and dimensions
- Required forming process and tooling envelope
- Required force, stroke, daylight and table dimensions
- Target cycle time, handling requirements and installation constraints
Technical source: supplied Shandong Woda Heavy Industry product brochure, PDF page(s) 4. Manufacturer illustrations retain their original branding. Model-specific specifications and final equipment scope require written confirmation.
