Forging Hammers
Hydraulic Open-die Forging Hammers
Anyang publishes C66Y fully hydraulic open-die hammers and C61Y hydraulic C-type open-die hammers. The C61Y arrangement provides three-sided access; the C66Y family includes several structural arrangements.

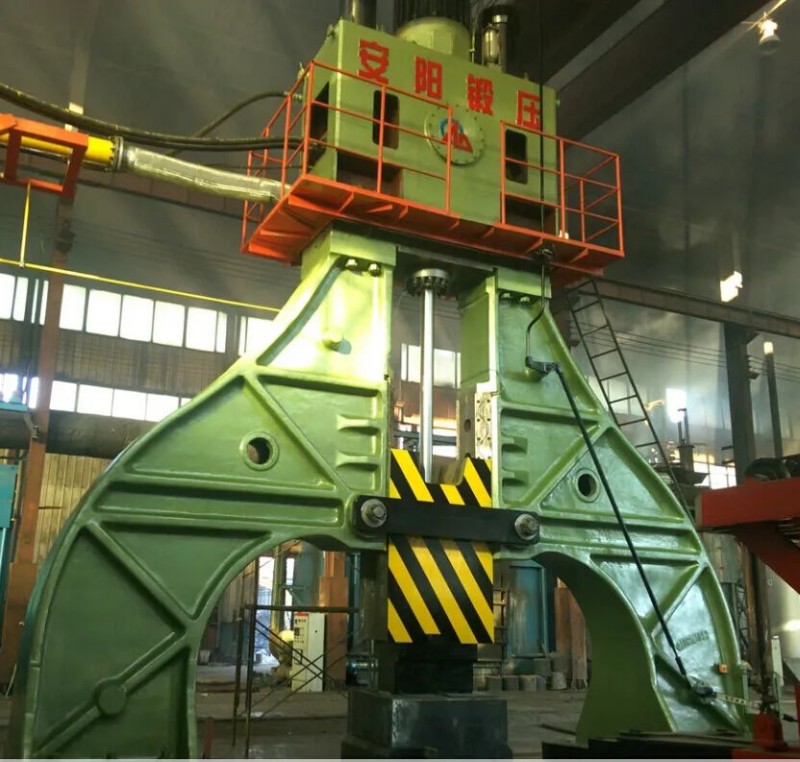

Manufacturer product images
Technical information
| Parameter | Published manufacturer information |
|---|---|
| C66Y published models | C66Y-35 through C66Y-875 |
| C66Y blow-energy range | 35-875 kJ |
| C66Y falling-part weight | 1,300-28,000 kg |
| C66Y maximum stroke | 1,000-2,600 mm |
| C61Y published models | C61Y-30 through C61Y-350 |
| C61Y blow-energy range | 30-350 kJ |
| C61Y maximum stroke | 1,000-2,200 mm |

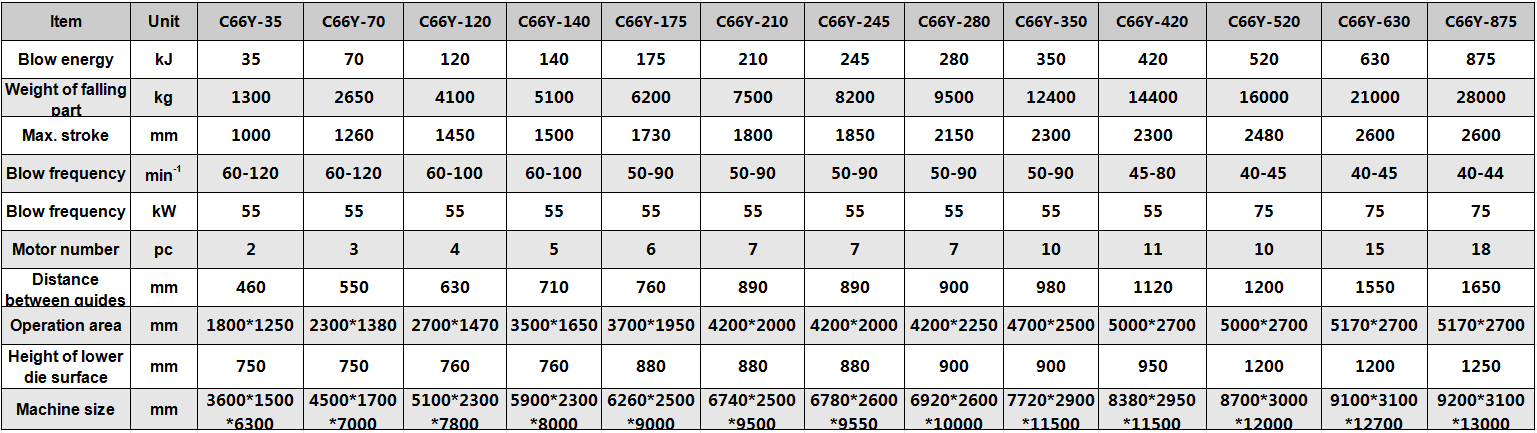

Complete official parameter charts
C66Y and C61Y are separate series; their rows must not be combined into one specification. The C66Y source chart contains a row labelled Blow frequency with a kW unit. That source label is retained in the original image; its interpretation requires manufacturer confirmation.
Technical sources, checked 24 October 2026: Fully Hydraulic Open Die Forging Hammer (C66Y) · Hydraulic C type Open Die Forging Hammer (C61Y) · Manufacturer application reference. Final model configuration and technical documentation require written confirmation.
